GLOBAL MANUFACTURING SUPPLIER OF EUROPE SINCE 1996

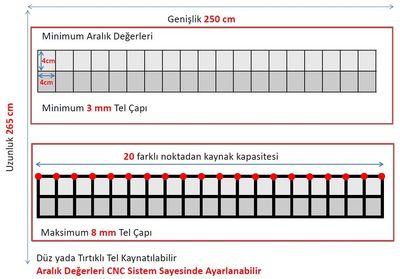

3D PANEL FENCE

3D PANEL FENCE

250 CM WIDTH

265 CM LEGNTH

40*40 CM MINIMUM INTERVAL VALUE

3 MM - 8MM WIRE DIAMETER

20 DIFFERENT POINT WELDING CAPACITY

SUITABLE FOR FLAT OR RIBBED WIRE

Fence Accessories

Steel Dowel

 Rustproof steel dowels are used for mounting and fixing posts and panels on concrete floor.

Metal Clamp, Nut and Screw

 These accessories produced from galvanized plating iron are used to mount the fence panels to the fence post side by side. In addition, these accessories are covered with a nut and screw to prevent rust. It can be coated with polyester based electrostatic or PVC based thermoplastic powder paint.

Plastic Clips and Metal Nails

 These accessories, which can only be used in perforated posts are made of polyamide material resistant to UV rays and are resistant to sunlight. Resistant to rusting. It is used to connect the fence panels to the fence post.

Plastic Cap

 These accessories, which can be used in all box profile posts, are made of UV resistant polyamide and are resistant to sunlight. It is used to connect the fence panels to the fence post.

Plastic Clamp, Nut and Screw

 These accessories, which are used only in non-perforated posts, are made of UV resistant polyamide and are resistant to sunlight. It is used to connect the fence panels to the fence post.

Plastic Dowel and Hexagon Screw

 The Trifon screw is made of geometrically coated material and is therefore resistant to rust. It is used for fixing posts to concrete floor.

Metal Clips and Smart Screw

 Smart screw geomet is covered and resistant to rust. It is produced from hot-dip galvanized sheet and can be coated with polyester based electrostatic or PVC based thermoplastic powder paint. The most important feature of the screw is that the tip is in the form of a drill. In this way, the profile can be mounted comfortably. This clip and smart screw can be used to connect the fence panel to the fence post. It is used at the points of the posts and at the points where the panels do not coincide with the clip holes.

Nut Rivet, Metal Clips and Locking Screw

 The nut rivet and the lock screw are produced from the geometry which is resistant to rust. The metal clip is made of hot-dip galvanized sheet and can be coated with polyester-based electrostatic or PVC-based thermoplastic powder paint. It is used to connect double fence panels to posts.
